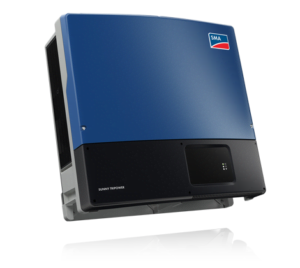

Sunny Trip Power 12000 TL- US

The Sunny Trip power 12000 TL- US is your answer for all medium and large scale decentralized PV systems. This is your answer for maximum efficiency. It is equipped with two different MPP trackers offering massive flexibility. The functions include cutting edge monitoring and communication technology. This is the best one can get at this price range.

The device features:

98% peak efficiency
Ideal to be used in applications with input voltages of up to 600 and up to 1000 volts
Path breaking communication and monitoring technology

Offers various power classes
OptiTrac Global Peak shade management
DC input voltage range of up to 1000 volts

Input (DC)
Max. DC power (at cos ϕ = 1)	12.5 kW
Max. DC voltage	1000 V
PV-voltage range, MPPT	150 800 V
Max. input current (input A / input B)	22 A / 11 A
Number of MPP trackers	2
Max. number of parallel strings (input A / input B)	4/1
Output (AC)
Nominal AC output	12 kVA
Max. AC power	12 Kva
Max. output current	19.2 A
Nominal AC voltage	3 / N / PE, 230 / 400V
AC grid frequency (self-adjusting) / range	50 Hz / 60 Hz / ± 4.5 Hz
Phase shift (cos ϕ), adjustable	0.8 leading ... 0.8 lagging
AC connection	Three-phase
Efficiency
Max. efficiency/ Euro-Eta	98 % / 97.5 %
General Data
Dimensions (W / H / D) in mm	665 / 690 / 265
Weight	approx. 65 kg
Operating temperature range	-25 °C +60 °C
Consumption: operating (standby) / night	< 12.5 W / < 1 W
Topology	transformerless
Cooling concept	OptiCool
Installation: Indoors / Outdoors (IP65 electronics)	●/●

Modbus protocol interface for flexible and smooth integration of inverters.
Speedwire/Webconnect data module for better performance of Webconnect function.
The Connection Unit with integrated reverse polarity for safe installation.
SMA ReadyRack™ for a simplified installation process.
SMA Cluster Controller for better control over decentralized large-scale PV power plants.
Data module with RS485 interfaces for further expansion of existing PV systems.
