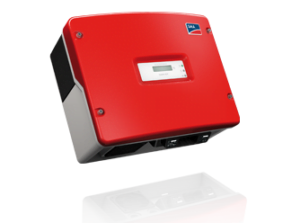

Sunny Boy 3300
The SunnyBoy 3300 can easily be used in all kinds of AC grids due to its galvanic isolation. Its PV array grounding makes it universally suitable with all module types. It is equipped with Opticool active cooling system offering highest yield and a long service life, even under extreme conditions. It is made up of die cast aluminum enclosure for a robust built and offers the best value for your money.
- Higher efficiency up to 95.6%
- Active temperature management through Opticool
- Optitrack MPP tracking
- Suitable for outdoor and indoor installation
- Integrated grid management
- SUNCLIX DC plug-in system
| Input (DC) | |
|---|---|
| Max. DC power (@ cos ϕ = 1) | 3820 W |
| Max. input voltage | 500 V |
| MPP voltage range / rated input voltage | 200 V 400 V / 200 V |
| Min. input voltage / start input voltage | 200 V / 250 V |
| Max. input current | 20 A |
| Max. input current per string | 16 A |
| Number of independent MPP inputs / strings per MPP input | 1 / 3** |
| Output (AC) | |
| Rated power (@ 230 V, 50 Hz) | 3 300 W |
| Max. apparent AC power | 3 600 VA |
| Nominal AC voltage / range | 220 V, 230 V,240 V/180 V 265 V |
| AC power frequency / range | 50 Hz, 60 Hz / -4.5 Hz +4.5 Hz |
| Rated power frequency / rated grid voltage | 50 Hz / 230 V |
| Max. output current | 18 A |
| Power factor at rated power | 1 |
| Displacement power factor, adjustable | 0.8 overexcited ... 0.8 underexcited |
| Feed-in phases / connection phases | 1/1 |
| Efficiency | |
| Max. efficiency / European efficiency | 95.2 % / 94.4 % |
| General data | |
| Dimensions (W / H / D) | 450 / 352 / 236 mm (17.7 / 13.9 / 9.3 inches) |
| Weight | 38 kg / 83.6 lb |
| Operating temperature range | -25°C
+60°C (-13°F +140°F) |
| Noise emission (typical) | 40 dB(A) |
| Self-consumption (at night) | 0.1 W |
| Topology | LF transformer |
| Cooling concept | OptiCool |
| Degree of protection (as per IEC 60529) | IP65 |
| Degree of protection of connection area (as per IEC 60529) | IP65 |
| Climatic category (as per IEC 60721-3-4) | 4K4H |
| Maximum permissible value for relative humidity (non-condensing) | 100% |
- Blutooth Piggy Back
- Data module with RS485 interface
